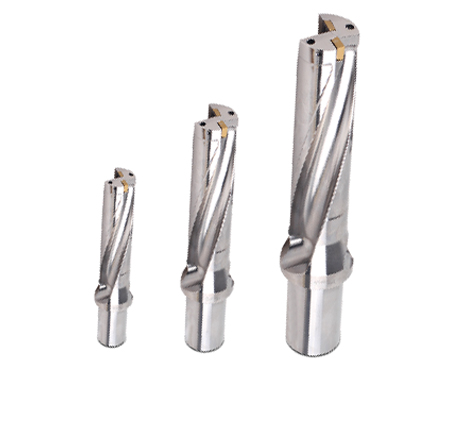

产品特点

●2D/3D/4D/5D

●内部采用内冷却结构，钻头刀片寿命更高

●刀片可转位使用，节省辅助时间

●适用于高速切削，加工质量高，排屑性能好

●多种刀片材质可选

钢
不锈钢
铸铁
有色金属材料
超级耐热合金
淬硬钢

产品范围

DR钻头(2D)

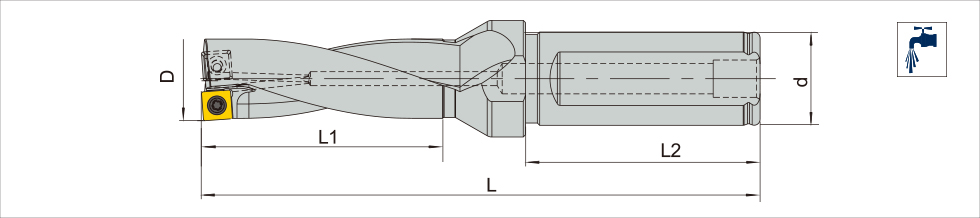

规格型号	D	L1	L	L2	d	适用刀片	螺丝	扳手
DR D15.W25.30.SP05	15.0	30	108	56	25	SP..0502..	SR13 M2x5	KEY03 T6
DR D15,5.W25.31.SP06	15.5	31	109	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D16.W25.32.SP06	16	32	110	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D16,5.W25.33.SP06	16.5	33	111	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D17.W25.34.SP06	17	34	112	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR 17,5.W25.35.SP06	17.5	35	113	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D18.W25.36.SP06	18	36	114	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D18,5.W25.37.SP06	18.5	37	115	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D19.W25.38.SP06	19	38	116	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D19,5.W25.39.SP06	19.5	39	117	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D20.W25.40.SP06	20	40	119	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D20,5.W25.41.SP06	20.5	41	120	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D21.W25.42.SP06	21	42	121	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D21,5.W25.43.SP06	21.5	43	122	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D22.W25.44.SP07	22	44	123	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D22,5.W25.45.SP07	22.5	45	124	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D23.W25.46.SP07	23	46	125	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D23,5.W25.47.SP07	23.5	47	126	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D24.W25.48.SP07	24	48	127	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D24,5.W25.49.SP07	24.5	49	128	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D25.W32.50.SP07	25	50	141	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D25,5.W32.51.SP07	25.5	51	142	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D26.W32.52.SP07	26	52	143	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D26,5.W32.53.SP07	26.5	53	144	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D27.W32.54.SP07	27	54	145	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D27,5.W32.55.SP09	27.5	55	146	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D28.W32.56.SP09	28	56	147	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D28,5.W32.57.SP09	28.5	57	148	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D29.W32.58.SP09	29	58	149	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D29,5.W32.59.SP09	29.5	59	150	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D30.W32.60.SP09	30	60	151	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D30,5.W32.61.SP09	30.5	61	152	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D31.W32.62.SP09	31	62	153	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D31,5.W32.63.SP09	31.5	63	154	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D32.W32.64.SP09	32	64	155	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D32,5.W32.65.SP09	32.5	65	156	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D33.W32.66.SP09	33	66	157	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D33,5.W32.67.SP11	33.5	67	158	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D34.W32.68.SP11	34	68	159	60	32	SP..0502..	SR13 M4x10	KEY03 T15
DR D34,5.W32.69.SP11	34.5	69	160	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D35.W32.70.SP11	35	70	161	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D35,5.W32.71.SP11	35.5	71	162	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D36.W32.72.SP11	36	72	163	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D36,5.W32.73.SP11	36.5	73	164	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D37.W32.74.SP11	37	74	165	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D37,5.W32.75.SP11	37.5	75	166	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D38.W32.76.SP11	38	76	167	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D38,5.W32.77.SP11	38.5	77	168	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D39.W32.78.SP11	39	78	169	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D39,5.W32.79.SP11	39.5	79	170	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D40.W32.80.SP11	40	80	171	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D41.W32.82.SP14	41	82	173	60	32	SP..1405..	SR13 M5x10	KEY03 T20
DR D42.W32.84.SP14	42	84	175	60	32	SP..1405..	SR13 M5x10	KEY03 T20
DR D43.W40.86.SP14	43	86	186	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D44.W40.88.SP14	44	88	188	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D45.W40.90.SP14	45	90	190	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D46.W40.92.SP14	46	92	192	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D47.W40.94.SP14	47	94	194	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D48.W40.96.SP14	48	96	196	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D49.W40.98.SP14	49	98	198	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D50.W40.100.SP14	50	100	200	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D51.W40.102.SP14	51	102	202	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D52.W40.104.SP09	52	104	204	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D53.W40.106.SP09	53	106	206	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D54.W40.108.SP09	54	108	208	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D55.W40.110.SP09	55	110	210	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D56.W40.112.SP09	56	112	212	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D57.W40.114.SP09	57	114	214	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D58.W40.116.SP09	58	116	216	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D59.W40.118.SP09	59	118	218	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D60.W40.120.SP09	60	120	220	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15

●刀片请根据不同材料单独订购，“请点击此处”

DR钻头(3D)


规格型号	D	L1	L	L2	d	适用刀片	螺丝	扳手
DR D15.W25.45.SP05	15.0	45	123	56	25	SP..0502..	SR13 M2x5	KEY03 T6
DR D15,5.W25.46,5.SP06	15.5	46.5	124	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D16.W25.48.SP06	16	48	126	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D16,5.W25.49,5.SP06	16.5	49.5	127	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D17.W25.51.SP06	17	51	129	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR 17,5.W25.52,5.SP06	17.5	52.5	130	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D18.W25.54.SP06	18	54	132	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D18,5.W25.55,5.SP06	18.5	55.5	133	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D19.W25.57.SP06	19	57	135	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D19,5.W25.58,5.SP06	19.5	58.5	135	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D20.W25.60.SP06	20	60	139	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D20,5.W25.61,5.SP06	20.5	61.5	140	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D21.W25.63.SP06	21	63	142	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D21,5.W25.64,5.SP06	21.5	64.5	143	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D22.W25.66.SP07	22	66	145	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D22,5.W25.67,5.SP07	22.5	67.5	148	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D23.W25.69.SP07	23	69	148	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D23,5.W25.70,5.SP07	23.5	70.5	149	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D24.W25.72.SP07	24	72	151	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D24,5.W25.73,5.SP07	24.5	73.5	152	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D25.W32.75.SP07	25	75	166	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D25,5.W32.76,5.SP07	25.5	76.5	167	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D26.W32.78.SP07	26	78	169	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D26,5.W32.79,5.SP07	26.5	79.5	170	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D27.W32.81.SP07	27	81	172	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D27,5.W32.82,5.SP09	27.5	82.5	173	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D28.W32.84.SP09	28	84	175	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D28,5.W32.85,5.SP09	28.5	85.5	176	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D29.W32.87.SP09	29	87	178	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D29,5.W32.88,5.SP09	29.5	88.5	179	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D30.W32.90.SP09	30	90	181	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D30,5.W32.91,5.SP09	30.5	91.5	182	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D31.W32.93.SP09	31	93	184	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D31,5.W32.94,5.SP09	31.5	94.5	185	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D32.W32.96.SP09	32	96	187	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D32,5.W32.97,5.SP09	32.5	97.5	188	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D33.W32.99.SP09	33	99	190	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D33,5.W32.100,5.SP11	33.5	100.5	191	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D34.W32.102.SP11	34	102	193	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D34,5.W32.103,5.SP11	34.5	103.5	194	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D35.W32.105.SP11	35	105	196	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D35,5.W32.106,5.SP11	35.5	106.5	197	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D36.W32.108.SP11	36	108	199	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D36,5.W32.109,5.SP11	36.5	109.5	200	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D37.W32.111.SP11	37	111	202	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D37,5.W32.112,5.SP11	37.5	112.5	203	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D38.W32.114.SP11	38	114	205	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D38,5.W32.115,5.SP11	38.5	115.5	206	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D39.W32.117.SP11	39	117	206	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D39,5.W32.118,5.SP11	39.5	118.5	209	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D40.W32.120.SP11	40	120	211	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D41.W32.123.SP14	41	123	214	60	32	SP..1405..	SR13 M5x10	KEY03 T20
DR D42.W32.126.SP14	42	126	217	60	32	SP..1405..	SR13 M5x10	KEY03 T20
DR D43.W40.129.SP14	43	129	229	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D44.W40.132.SP14	44	132	232	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D45.W40.135.SP14	45	135	235	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D46.W40.138.SP14	46	138	238	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D47.W40.141.SP14	47	141	241	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D48.W40.144.SP14	48	144	244	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D49.W40.147.SP14	49	147	247	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D50.W40.150.SP14	50	150	250	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D51.W40.153.SP14	51	153	253	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D52.W40.156.SP09	52	156	256	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D53.W40.159.SP09	53	159	259	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D54.W40.162.SP09	54	162	262	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D55.W40.165.SP09	55	165	265	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D56.W40.168.SP09	56	168	268	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D57.W40.171.SP09	57	171	271	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D58.W40.174.SP09	58	174	274	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D59.W40.177.SP09	59	177	277	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D60.W40.180.SP09	60	180	280	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15

●刀片请根据不同材料单独订购，“请点击此处”

DR钻头(4D)


规格型号	D	L1	L	L2	d	适用刀片	螺丝	扳手
DR D15.W25.60.SP05	15.0	60	138	56	25	SP..0502..	SR13 M2x5	KEY03 T6
DR D15,5.W25.62.SP06	15.5	62	140	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D16.W25.64.SP06	16	64	142	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D16,5.W25.66.SP06	16.5	66	144	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D17.W25.68.SP06	17	68	146	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR 17,5.W25.70.SP06	17.5	70	148	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D18.W25.72.SP06	18	72	150	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D18,5.W25.74.SP06	18.5	74	152	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D19.W25.76.SP06	19	76	154	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D19,5.W25.78.SP06	19.5	78	155	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D20.W25.80.SP06	20	80	159	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D20,5.W25.82.SP06	20.5	82	161	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D21.W25.84.SP06	21	84	163	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D21,5.W25.86.SP06	21.5	86	165	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D22.W25.88.SP07	22	88	167	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D22,5.W25.90.SP07	22.5	90	169	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D23.W25.92.SP07	23	92	171	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D23,5.W25.94.SP07	23.5	94	173	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D24.W25.96.SP07	24	96	175	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D24,5.W25.98.SP07	24.5	98	177	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D25.W32.100.SP07	25	100	191	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D25,5.W32.102.SP07	25.5	102	193	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D26.W32.104.SP07	26	104	195	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D26,5.W32.106.SP07	26.5	106	197	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D27.W32.108.SP07	27	108	199	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D27,5.W32.110.SP09	27.5	110	201	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D28.W32.112.SP09	28	112	203	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D28,5.W32.114.SP09	28.5	114	205	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D29.W32.116.SP09	29	116	207	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D29,5.W32.118.SP09	29.5	118	209	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D30.W32.120.SP09	30	120	211	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D30,5.W32.122.SP09	30.5	122	213	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D31.W32.124.SP09	31	124	215	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D31,5.W32.126.SP09	31.5	126	217	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D32.W32.128.SP09	32	128	219	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D32,5.W32.130.SP09	32.5	130	221	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D33.W32.132.SP09	33	132	223	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D33,5.W32.134.SP11	33.5	134	225	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D34.W32.136.SP11	34	136	227	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D34,5.W32.138.SP11	34.5	138	229	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D35.W32.140.SP11	35	140	231	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D35,5.W32.142.SP11	35.5	142	233	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D36.W32.144.SP11	36	144	235	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D36,5.W32.146.SP11	36.5	146	237	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D37.W32.148.SP11	37	148	239	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D37,5.W32.150.SP11	37.5	150	241	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D38.W32.152.SP11	38	152	243	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D38,5.W32.154.SP11	38.5	154	245	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D39.W32.156.SP11	39	156	247	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D39,5.W32.158.SP11	39.5	158	249	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D40.W32.160.SP11	40	160	251	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D41.W32.164.SP14	41	164	255	60	32	SP..1405..	SR13 M5x10	KEY03 T20
DR D42.W32.168.SP14	42	168	259	60	32	SP..1405..	SR13 M5x10	KEY03 T20
DR D43.W40.172.SP14	43	172	272	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D44.W40.176.SP14	44	176	276	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D45.W40.180.SP14	45	180	280	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D46.W40.184.SP14	46	184	284	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D47.W40.188.SP14	47	188	288	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D48.W40.192.SP14	48	192	292	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D49.W40.196.SP14	49	196	296	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D50.W40.200.SP14	50	200	300	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D51.W40.204.SP14	51	204	304	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D52.W40.208.SP09	52	208	308	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D53.W40.212.SP09	53	212	312	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D54.W40.216.SP09	54	216	316	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D55.W40.220.SP09	55	220	320	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D56.W40.224.SP09	56	224	324	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D57.W40.228.SP09	57	228	328	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D58.W40.232.SP09	58	232	332	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D59.W40.236.SP09	59	236	336	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D60.W40.240.SP09	60	240	340	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15

●刀片请根据不同材料单独订购，“请点击此处”

DR钻头(5D)


规格型号	D	L1	L	L2	d	适用刀片	螺丝	扳手
DR D20.W25.100.SP06	20.0	100	179	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D20,5.W25.102,5.SP06	20.5	102.5	181	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D21.W25.105.SP06	21	105	184	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D21,5.W25.107,5.SP06	21.5	107.5	186	56	25	SP..0602..	SR13 M2.2x5	KEY03 T6
DR D22.W25.110.SP07	22	110	189	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D22,5.W25.112.5.SP07	22.5	112.5	193	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D23.W25.115.SP07	23	115	194	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D23,5.W25.117,5.SP07	23.5	117.5	196	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D24.W25.120.SP07	24	120	199	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D24,5.W25.122,5.SP07	24.5	122.5	201	56	25	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D25.W32.125.SP07	25	125	216	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D25,5.W32.127,5.SP07	25.5	127.5	218	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D26.W32.130.SP07	26	130	221	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D26,5.W32.132,5.SP07	26.5	132.5	223	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D27.W32.135.SP07	27	135	226	60	32	SP..07T3..	SR13 M2.5x6	KEY03 T8
DR D27,5.W32.137,5.SP09	27.5	137.5	228	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D28.W32.140.SP09	28	140	231	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D28,5.W32.142,5.SP09	28.5	142.5	233	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D29.W32.145.SP09	29	145	236	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D29,5.W32.147,5.SP09	29.5	147.5	238	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D30.W32.150.SP09	30	150	241	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D30,5.W32.152,5.SP09	30.5	152.5	243	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D31.W32.155.SP09	31	155	246	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D31,5.W32.157,5.SP09	31.5	157.5	248	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D32.W32.160.SP09	32	160	251	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D32,5.W32.162,5.SP09	32.5	162.5	253	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D33.W32.165.SP09	33	165	256	60	32	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D33,5.W32.167,5.SP11	33.5	167.5	258	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D34.W32.170.SP11	34	170	261	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D34,5.W32.172,5.SP11	34.5	172.5	263	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D35.W32.175.SP11	35	175	266	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D35,5.W32.177,5.SP11	35.5	177.5	268	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D36.W32.180.SP11	36	180	271	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D36,5.W32.182,5.SP11	36.5	182.5	273	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D37.W32.185.SP11	37	185	276	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D37,5.W32.187,5.SP11	37.5	187.5	278	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D38.W32.190.SP11	38	190	281	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D38,5.W32.192,5.SP11	38.5	192.5	283	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D39.W32.195.SP11	39	195	284	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D39,5.W32.197,5.SP11	39.5	197.5	288	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D40.W32.200.SP11	40	200	291	60	32	SP..1104..	SR13 M4x10	KEY03 T15
DR D41.W32.205.SP14	41	205	296	60	32	SP..1405..	SR13 M5x10	KEY03 T20
DR D42.W32.210.SP14	42	210	301	60	32	SP..1405..	SR13 M5x10	KEY03 T20
DR D43.W40.215.SP14	43	215	315	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D44.W40.220.SP14	44	220	320	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D45.W40.225.SP14	45	225	325	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D46.W40.230.SP14	46	230	330	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D47.W40.235.SP14	47	235	335	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D48.W40.240.SP14	48	240	340	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D49.W40.245.SP14	49	245	345	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D50.W40.250.SP14	50	250	350	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D51.W40.255.SP14	51	255	355	65	40	SP..1405..	SR13 M5x10	KEY03 T20
DR D52.W40.260.SP09	52	260	360	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D53.W40.265.SP09	53	265	365	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D54.W40.270.SP09	54	270	370	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D55.W40.275.SP09	55	275	375	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D56.W40.280.SP09	56	280	380	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D57.W40.285.SP09	57	285	385	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D58.W40.290.SP09	58	290	390	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D59.W40.295.SP09	59	295	395	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15
DR D60.W40.300.SP09	60	300	400	65	40	SP..0904..	SR13 M3.5x8	KEY03 T15

●刀片请根据不同材料单独订购，“请点击此处”



最新资料更新中....

刀具

刀具

孔加工刀具

阻尼减振刀具

铣削刀具

刀柄系统

硬质合金刀具

车削刀具

附件

粗镗刀具

精镗刀具

镗刀系统

镗削刀夹

钻削

自动伸缩式反刮刀

镗刀片

阻尼减振车刀

阻尼减振镗刀

阻尼减振铣刀杆

阻尼减振刀具非标定制

可调式端面槽铣刀

可转位倒角刀

可转位立铣刀

可转位面铣刀

三面刃铣刀

模块式刀柄接杆

DIN69871-A

HSK-A

HSK-T

MAS403 BT

PSC

整体硬质合金铰刀系列

整体硬质合金立铣刀系列

整体硬质合金钻头系列

外圆车削刀具

车刀片

内孔车刀定位座

内孔车削刀具

套筒

附件

行业

行业

服务与支持

服务与支持

联系松德

浅孔钻

产品特点

产品范围

DR钻头(2D)

DR钻头(3D)

DR钻头(4D)

DR钻头(5D)

Contact Center 客服中心
